AJH WaveSwarm Silver

AJH WaveSwarm Silver

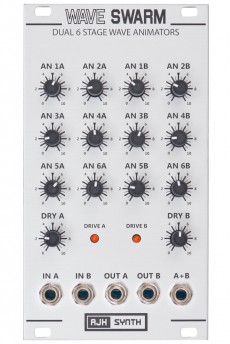

The WaveSwarm is a waveform animator, and is an all analog dual channel device. Each channel simulates up to six VCO's beating in unison with a different beat frequency between each animation. The fixed beat frequencies are generated by twelve onboard LFO's, and the front panel pots control the level of each of the six animators, and the level of the dry signal with the final mix.

In addition to independent channel inputs and outputs it also has an A+B output, which sums the outputs of the two channels, creating an effect similar to twelve VCO's in unison! This is possible because channel B uses slightly different beat frequencies to channel A, they are not identical.

The input waveform can be saw, triangle, sine or wavetable / complex waveforms, in fact most waveforms with the exception of square or pwm waves will give some form of animation.

It can produce huge, fat drones or supersaw type waveforms from a single sawtooth or triangle wave input.

HP : 14
.
.

.
