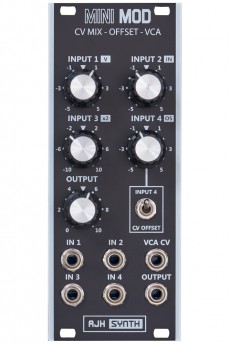

The CV-Mix-Offset-VCA is a bipolar mixer with four channels. It was designed especially for processing CV signals. Most inputs come equipped with a special feature. The first channel, for instance, can be employed as a voltage source. The fourth instance is usable as an offset generator. After the mixing stage, there is a linear VCA in the module’s signal flow. It comes equipped with a master level potentiometer and a CV input.
The CV-Mix-Offset-VCA offers four inputs, followed by bipolar level potentiometers. Their control range goes, in most cases, from +5 V to +5 V. The third channel is the exception. Here, the control range goes from -10 V to +10 V. As long as there’s no cable plugged into the first signal input, the channel can be used as a voltage source (+/- 6 V). The fourth channel is employable as an offset generator and / or a second CV input for the VCA.
Power consumption: 30mA at +12 V and 12mA at -12 V
Depth: 26mmHP : 10
