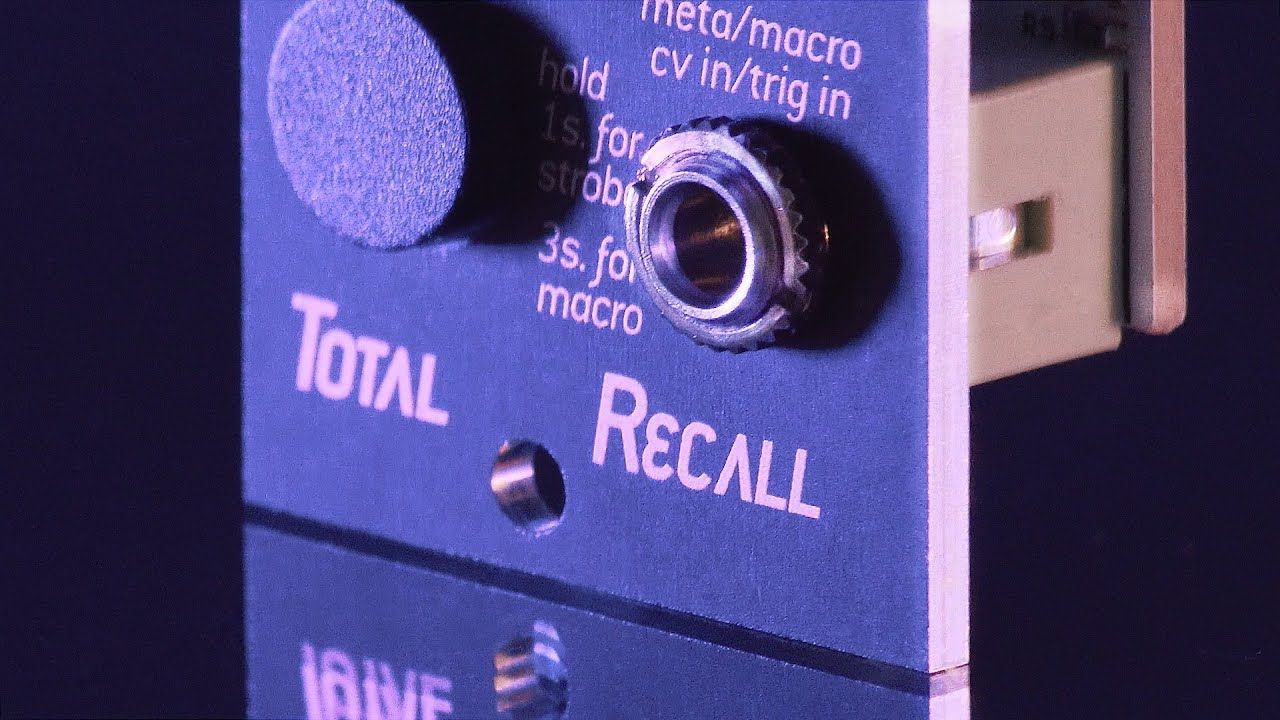

Endorphin.es Total Recall_BLCK


Total Recall offers CV storage for preset management, allowing for smooth and controlled transitions.

Features:

  • 3 channel control voltage generator/attenuator/attenuverter
  • 8 preset CV manager with two banks: bipolar -5...+5V and unipolar 0...+5V
  • Instant, slewed or continuous change between stored CV values
  • 3-channel macro CV generator with smooth min./max. control via CV, trigger or manually
  • CV acquisition: 16 bits SDADCs, CV outputs: 12 bits DACs

209€

Power consumption: 55mA at +12 V and 15mA at -12 V

Depth: 30mm


6 HP
